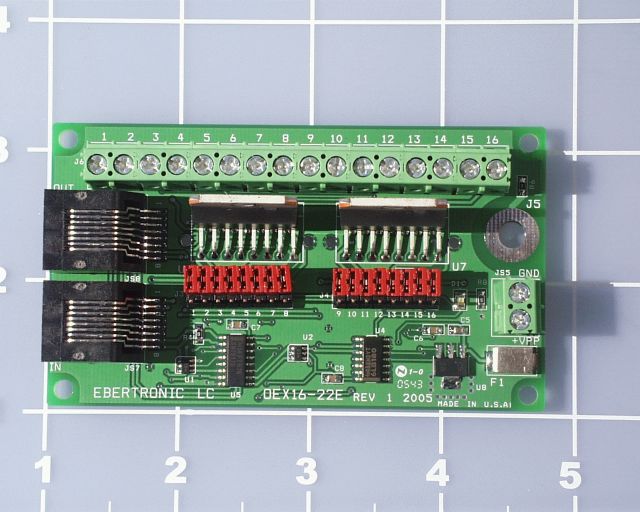

I/O Expander board for RabbitNet ports


  • Plug compatible to RabbitNet ports (but it uses SPI.LIB)
  • 16 inputs or outputs up to 35 Volts, freely configurable via jumpers
  • 700mA  per output (sinking, low side switch), will safely switch inductive loads
  • Short circuit and  temperature protection
  • Daisy chain up to 10 boards (equals 160 I/O points) up to 100 feet cable length at 200kbps (SPI Baud rate)
  • Available for $99 (with Dynamic C sample code to get you started).

       DISCONTINUED PRODUCT

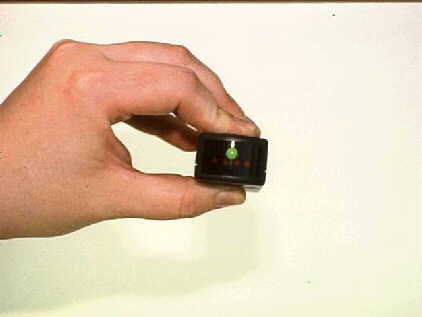

The Infrared Meter © 1995 Ebertronic LC

DISCONTINUED PRODUCT
